Eyebolts and Eyenuts available in Metric and Whitworth UNC threads and in various WLL

Machinery Eyebolts

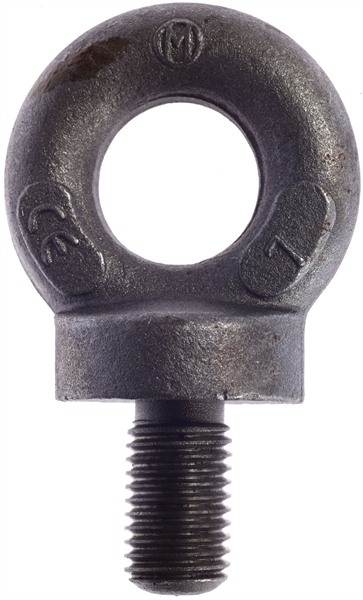

Machinery eye bolts are fully threaded and may have a shoulder or "collar" (commonly known as Collared Eyebolts), making them suitable for use with angular loads up to 45°

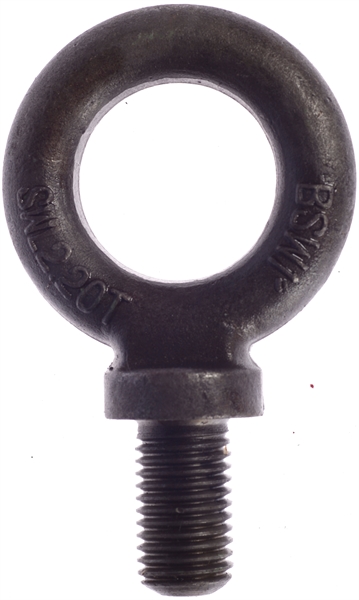

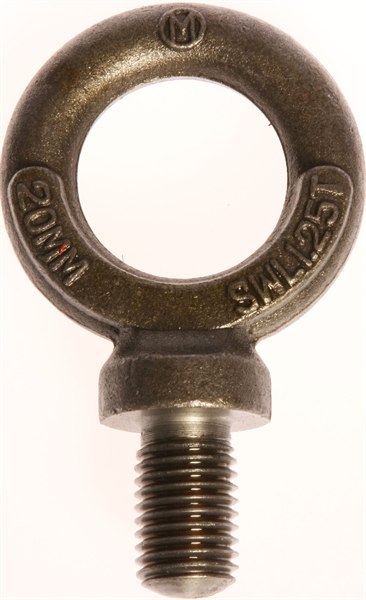

Eye bolts without a shoulder (commonly known as Dynamo Eyebolts) should not be used for angular loads (Vertical lift only)

Standard Collared Eyebolts may be used in pairs, usually combined with the use of a D-Shackle or Bow-Shackle

They can also be supplied with an oval or "Egg Link" pre-attached to allow a sling hook to be hooked in directly

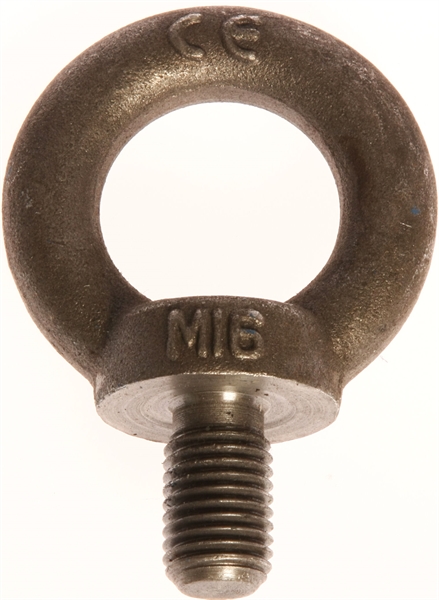

Dynamo Eyebolts, and DIN580 Eyebolts have a larger eye, allowing for the direct attachment of a sling hook

However, Dynamo Eyebolts should only be used for vertical lifting

DIN580 maybe used in pairs upto 45° at a REDUCED WLL Loading

Available in Metric and Whitworth/UNC and various imperial threads
